Self-Adhesive Gaskets
Porous rubber gaskets with self-adhesive tape, available in four colors (white, brown, black, and grey), designed for both industrial applications and DIY installation—anywhere additional sealing is needed that can withstand varying temperatures and weather conditions. The product is available under the Stomil Sanok brand as well as under our customers’ private labels.
The material is characterized by excellent resistance to:
- weather conditions
- UV radiation
- the effects of oxygen and ozone in the air

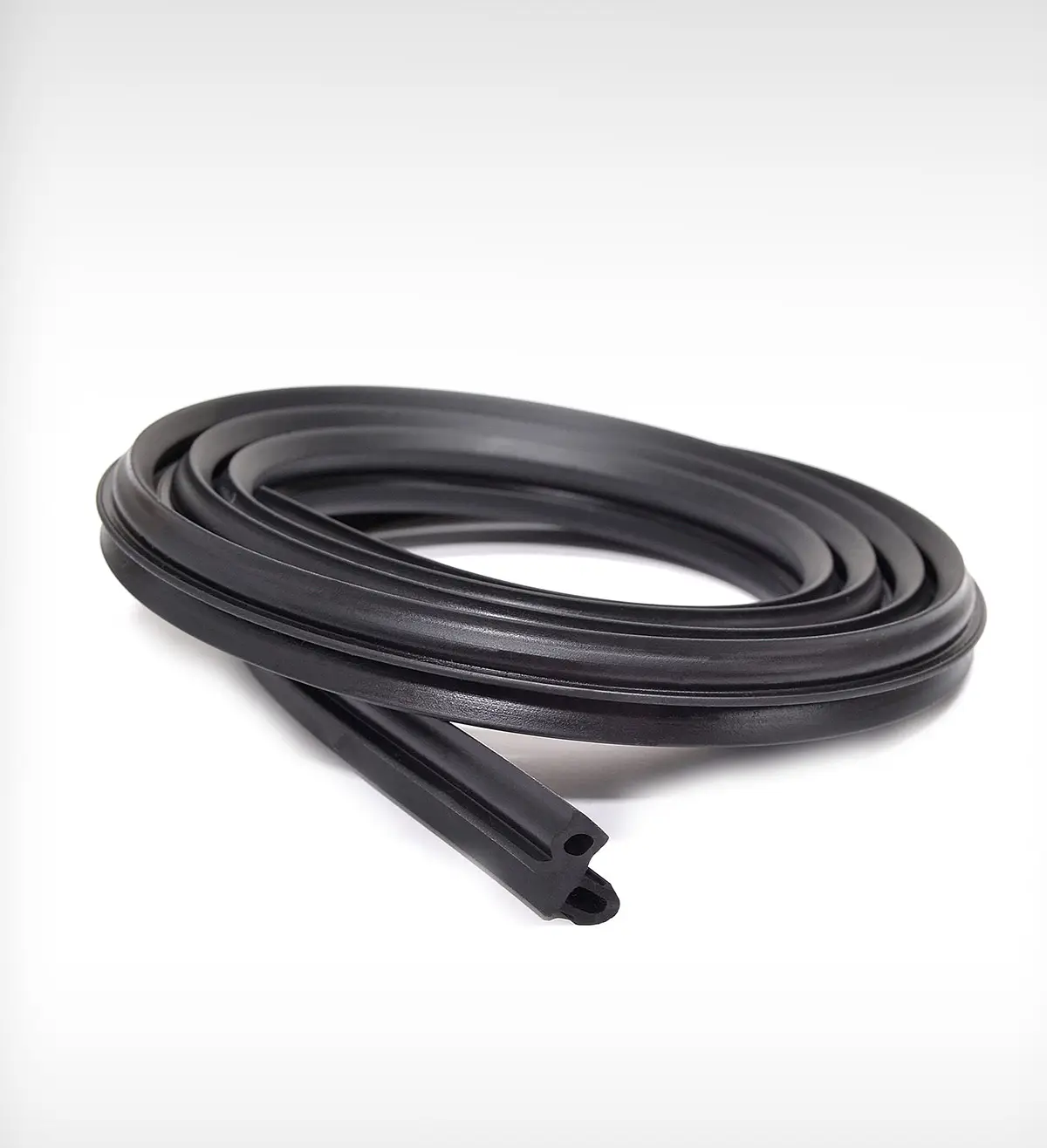

Solid Rubber
| Hardness (IRHO/ShA) DIN 7863 | A(50) | B(60) | C(70) | D(80) | |
| Tensile Strength (Mpa) DIN 7863 | A(≥5) | B(≥5) | C(≥5) | D(≥5) | |
| Elongation at Break (%) DIN 7863 | A(200) | B(200) | C(200) | D(150) | |
| Permanent Deformation |
100°C / 22h ≤ 35% in heat -25°C / 22h ≤ 70–90% in cold |
||||
| Ozone Resistance at a Concentration of 50±5 pphm, 20% Elongation, 38°C / 70h | No Cracks | ||||
| Low Temperature Resistance (ISO 3387) |
(-10°C/168 h) ≤ +10°ShA/IRHD |
||||
| Operating Temperature Range | -40°C / +100°C (+125°C) | ||||
| Storage in a Dry and Cool Place | ISO 2230:2012 (E) | ||||

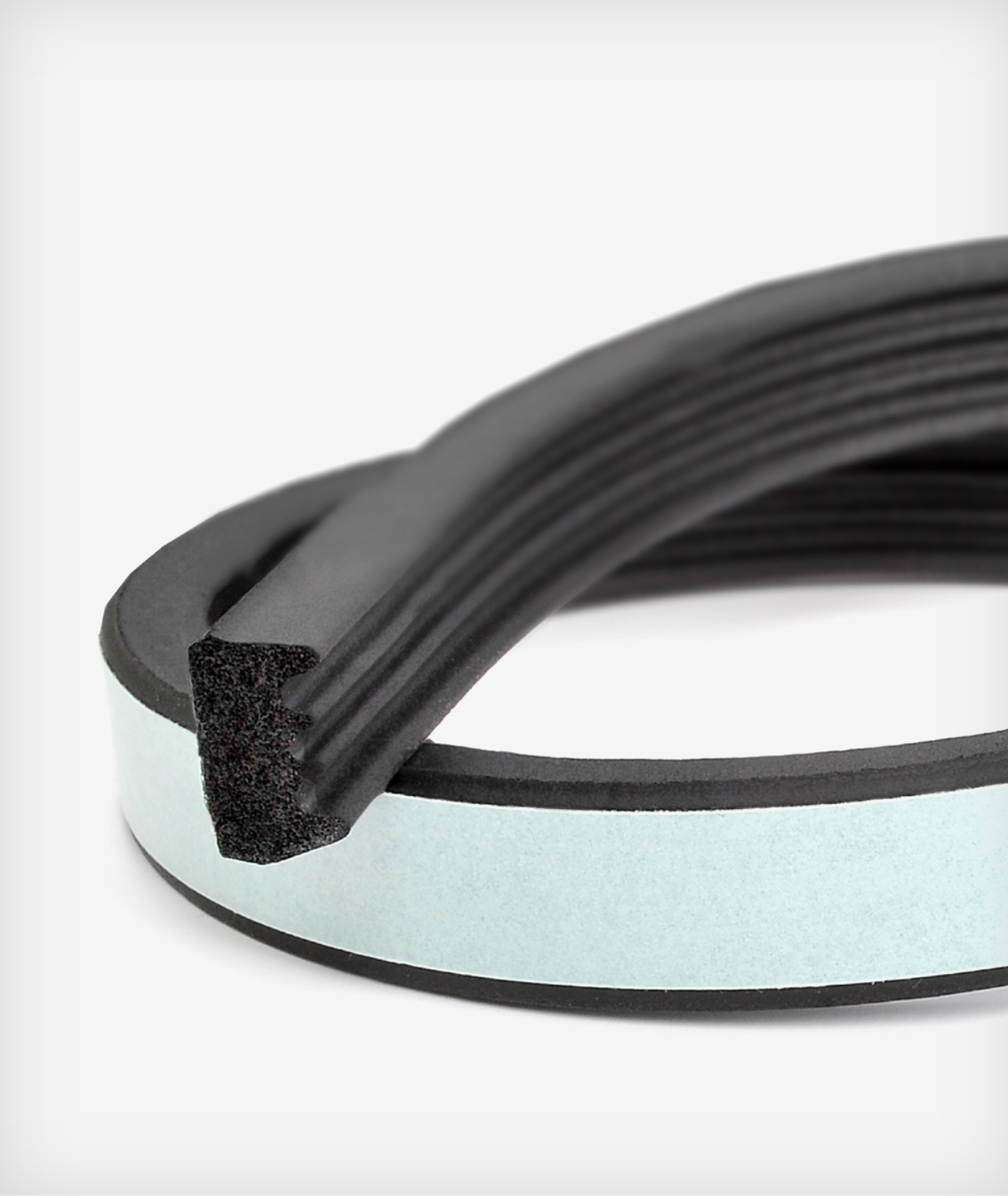

Porous Rubber
| Consumer Gaskets | Universal Gaskets | |||
| Density | 300+/-50 g/dm³ (ASTM D1056) | According to Product | ||
| Resistance to Water Absorption at 21±2°C |
<3% (ASTM D 1056) |
|||
| Permanent Deformation |
≤ 75% (SANOK RC ZN-66) |
≤ 50% (SANOK RC ZN-66) |
||
| Adhesion of Adhesive Layer to Rubber/Enamel at 70°C / 24h |
≥ 8 N/cm (SANOK RC ZN-66) |
≥ 10 N/cm (SANOK RC ZN-66) |
||
| Low Temperature Resistance | No Cracks (-40°C/70h) | |||
| Operating Temperature Range | -40°C/+65°C | |||
| Storage Conditions | No Direct Sunlight Exposure (≤70% Humidity) (≤25°C) | |||
| Static Shear Resistance | ≥ 300 sec / s / ceк. | |||
| Durability | No Cracks | |||
|
Low Temperature Resistance (SANOK RC ZN-66) |
(-40°C / 70h) No Cracks |
|||
| Operating Temperature Range | -40°C / +65°C | |||
| Storage in a Dry and Cool Place | No Direct Sunlight Exposure – (≤70% Humidity) (≤25°C) | |||
PACKAGING
Methods of packaging gaskets with self-adhesive tape:
- Jumbo rolls
- Sections of 50–300 m on spools
- Gaskets in cartons – sections of 6 m, 24 m
- Gaskets in coils
- According to customer requirements
