Sluice Gate

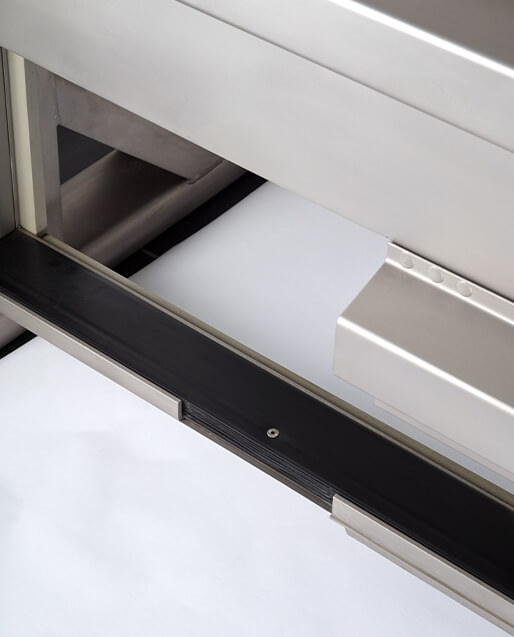

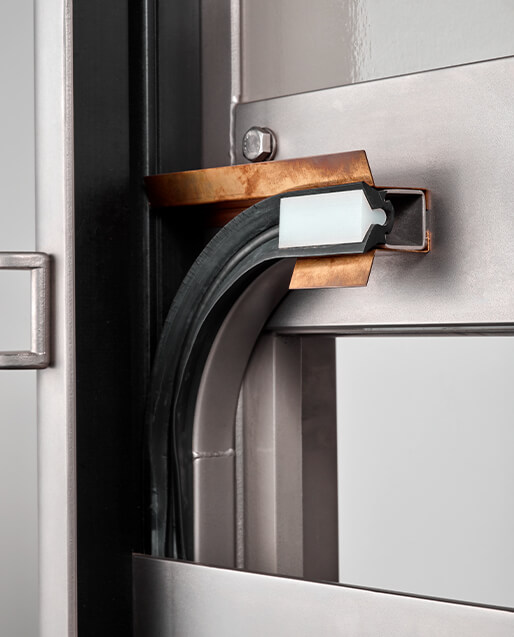

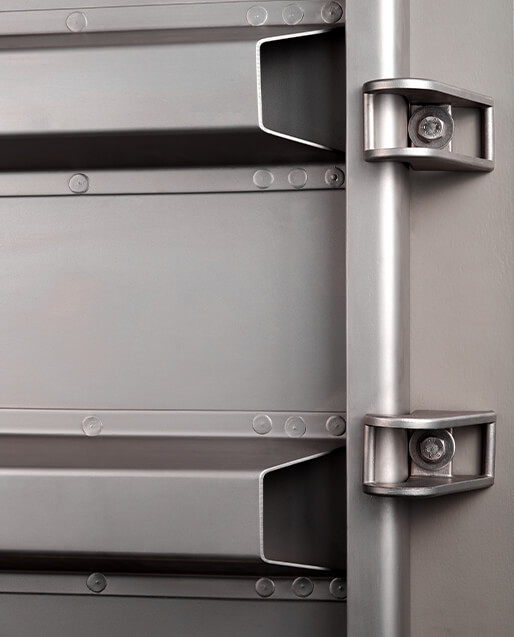

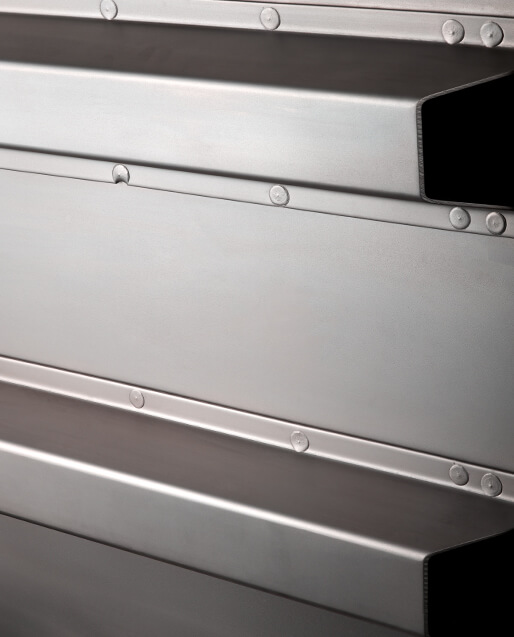

Our type 2, 3, and 4 sluice gates are all based on the same well thought-out design principle. Every one of our sluice gates is custom-made with great care. Thanks to the circumferential transverse seal and double scraper, our sluice gates are much tighter than the standard prescribes – and are tight in both flow directions.
CHARACTERISTICS Sluice gate
Design: Sluice gate
Width: 200 – 5000 mm
Head of water: 0 – 15 m
Application areas
Flood protection
Infrastructure
e.g. Waste water, Rainwater, Industrial water, Mixed water ...
Waste water treatment plants
e.g. Waste water, Raw water ...
Water treatment
e.g. Potable water, Seawater ...
MATERIAL OF CONSTRUCTION
| Part | Execution 1 | Execution 2 |
| Frame | 1.4404 | 1.4404 |
| Gate | 1.4404 | 1.4404 |
| Gate glider | RCH 1000 | |
| Plastic guide | PE-UHMW | PE-UHMW |
| Seal | NBR | EPDM |
| Stop log elements | 1.4404 | 1.4404 |
Other materials upon request
ACTUATORS
Square drive

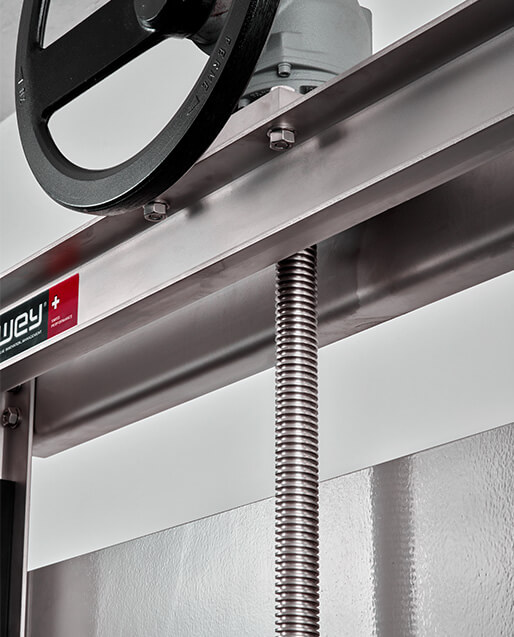

Handwheel
Bevel gear
Pneumatic cylinder
Hydraulic cylinder
Electric actuator
Downloads
General documents
Product brochure water control gates
Sluice Gate 2 instruction manual
Sluice Gate 3 instruction manual
Sluice Gate 4 instruction manual
Declaration of incorporation ECMD
