TL20

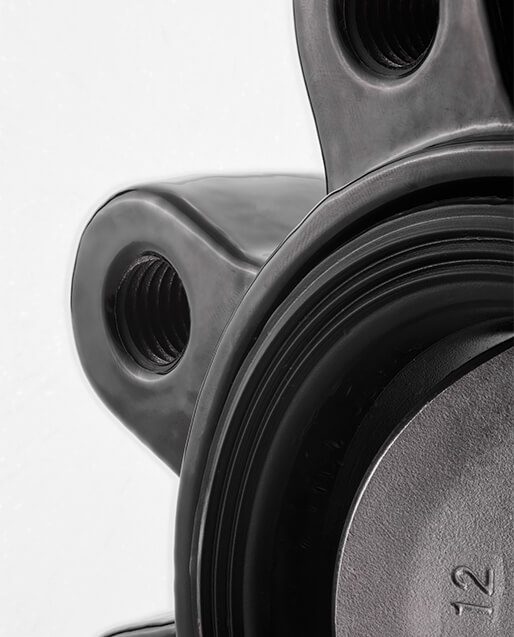

Our TL20 butterfly valve was designed for general industrial applications. Due to its lug flange design, it can serve as a complete and cost-effective replacement for double flange valves. It offers significant benefits in systems where a line must occasionally be isolated.
CHARACTERISTICS TL20
Nominal sizes: 25 – 1000 mm
Material: Stainless steel , Cast iron, Ductile iron, Carbon steel, Cast tin-bronze , Cast aluminum-bronze , Cast aluminium , Special material
Pressure rating: 0 – 25 bar
Flange drilling: PN10, PN16
Face to face dimension: EN 558 series 20
Application areas
Mining
e.g. Acids and phosphates ...
Chemical and petrochemical industries
e.g. Chemically contaminated waste water ...
Infrastructure
e.g. Industrial water, Mixed water ...
Food and beverage
e.g. Syrups, juices and beverages ...
Water treatment
e.g. Potable water, Seawater, Saltwater ...
MATERIAL OF CONSTRUCTION
| Part | Ductile iron | |

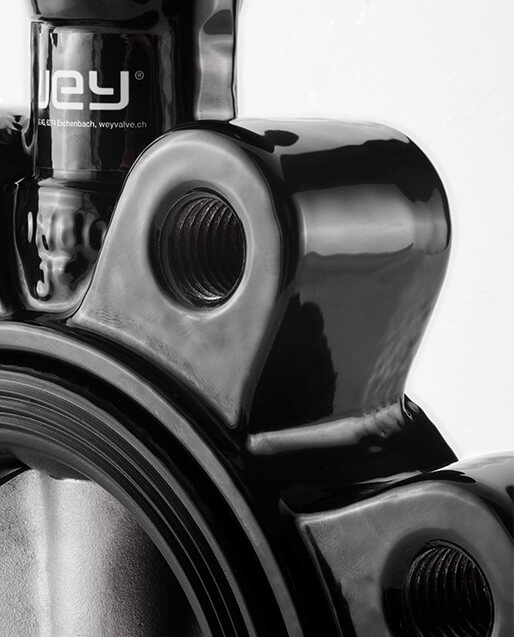

| Body | EN-GJS-400-15 | |

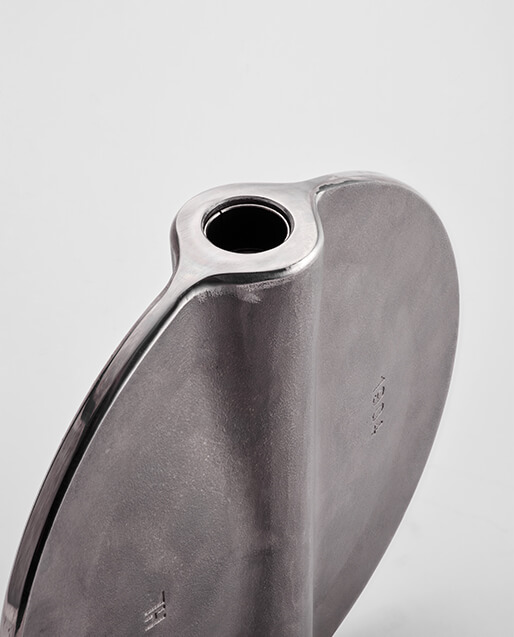

| Disc | 1.4408 | |

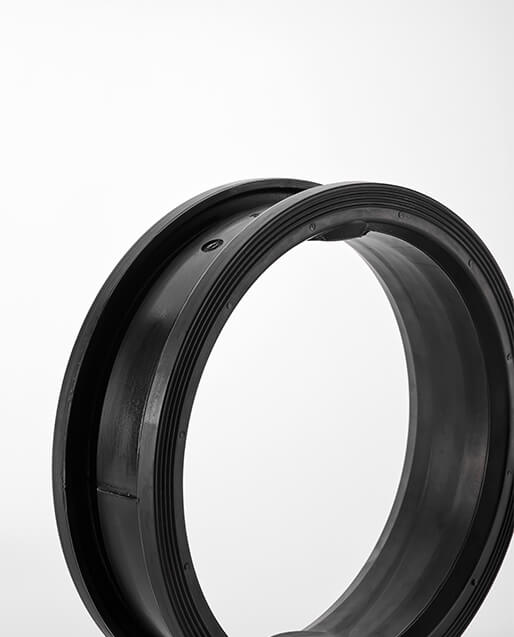

| Seal | EPDM | |
| Shaft | AISI 420 | |
| Shaft bearing | Acetyl / Steel bronze PTFE / Bronze | |
Other materials upon request
CORROSION PROTECTION
| Body | EKB powder coat | |
ACTUATORS
Manual lever
Manual gearbox
Pneumatic actuator
Electric actuator
