RSK

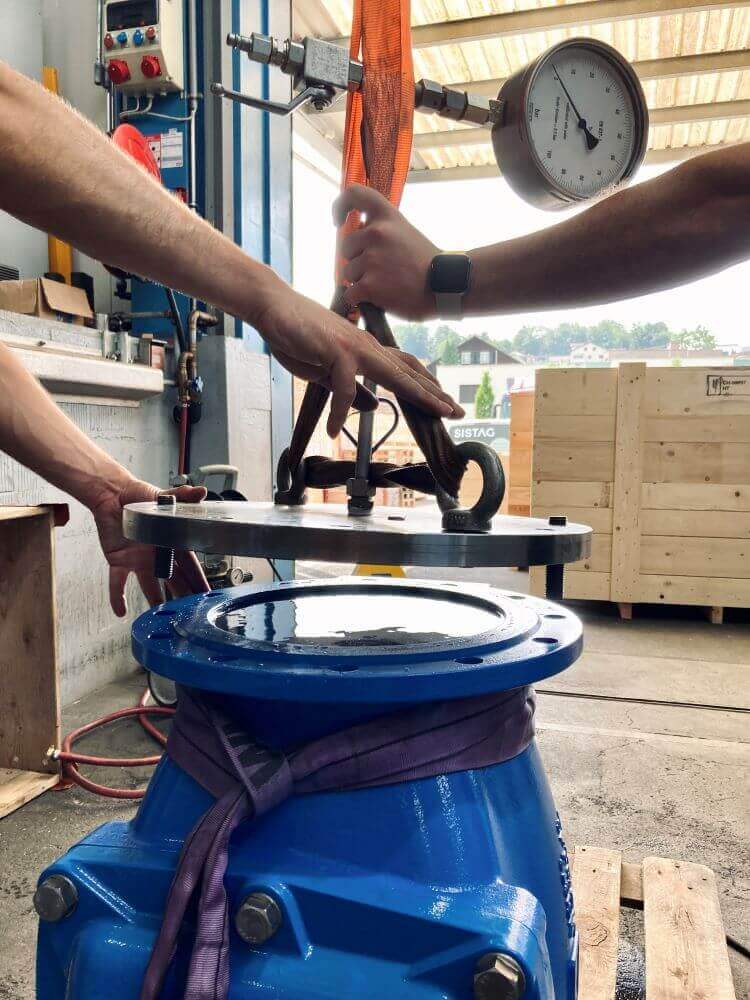

Our RSK check valve is our comprehensive answer to today’s demanding requirements. We have paid special attention to the robust design. The main difference compared to conventional check valves is that the valve disc and lever are not inside the body, but inside the cover, making it very user-friendly. Moreover, once the cover is removed, the valve body is fully exposed for any kind of inspection, even when it’s still installed in the system.
CHARACTERISTICS RSK
Nominal sizes: 65 – 300 mm
Material: Stainless steel , Cast iron, Ductile iron
Pressure rating: 0 – 10 bar
Flange drilling: PN10
Face to face dimension: EN 558 series 48
Application areas
Biogas plants
e.g. Manure ...
Infrastructure
e.g. Waste water, Rainwater, Industrial water, Mixed water ...
Waste water treatment plants
e.g. Waste water, Raw water, Sludge, Digested sludge, Floating sludge ...
Water treatment
e.g. Seawater ...
MATERIAL OF CONSTRUCTION
| Part | Cast iron / Ductile iron | Stainless steel |
| Body | EN-GJL-250 / EN-GJS-400-15 | 1.4581 |
| Disc | NBR rubberized | FPM rubberized |
| Seal | NBR | FPM |
| Shaft | 1.4104 | 1.4404 |
| Shaft bearing | Brass | Brass |
Other materials upon request
CORROSION PROTECTION
| Body | EKB powder coat or stainless steel 1.4581 | |
| Disc | NBR or FPM rubberized | |
| Screw | 1.4404 | |
