TF13
The TF13 butterfly valve comes with a wide face to face double flange and is suitable for the a variety of different standards (DIN, ANSI, BS). Thanks to its design and great strength, it is suitable for all applications requiring the use of a double flange valve, such as installation at the line end.
CHARACTERISTICS TF13
Nominal sizes: 40 – 1200 mm
Material: Ductile iron
Pressure rating: 0 – 16 bar
Flange drilling: PN10, PN16, ANSI Class 150
Face to face dimension: EN 558 series 13
Application areas
Water treatment
e.g. Potable water, Seawater, Saltwater ...
MATERIAL OF CONSTRUCTION
| Part | Ductile iron | |

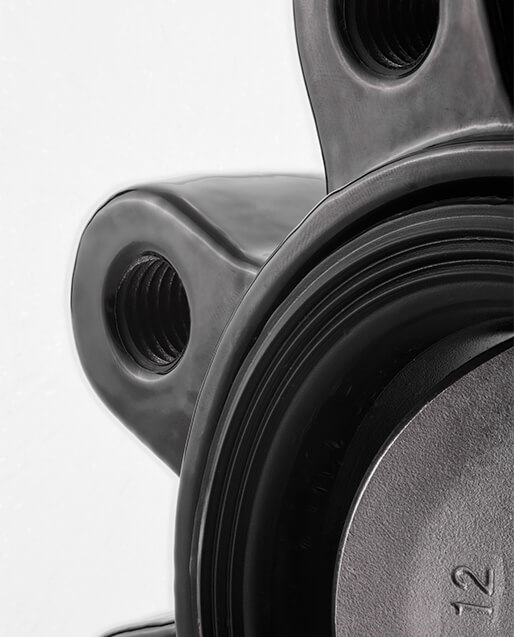

| Body | EN-GJS-400-15 | |

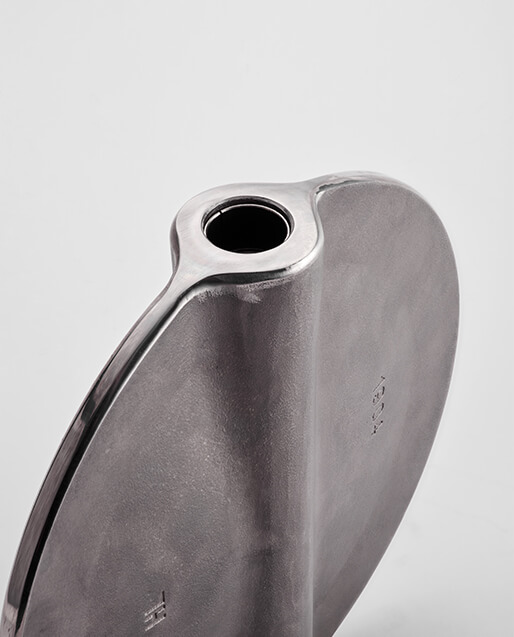

| Washer | 1.4408 | |

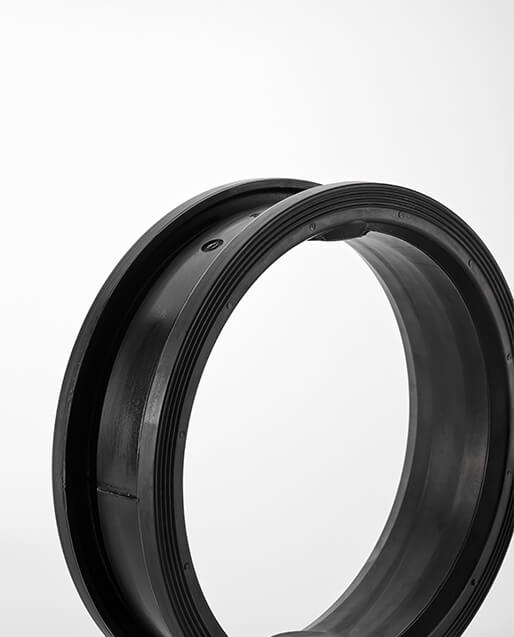

| Seal | EPDM | |
| Shaft | AISI 420 | |
| Shaft bushing | Acetyl / Steel bronze PTFE / Bronze | |
Other materials upon request
CORROSION PROTECTION
| Body | EKB powder coat | |
ACTUATORS
Manual lever
Manual gearbox
Pneumatic actuator
Electric actuator
