FB Series

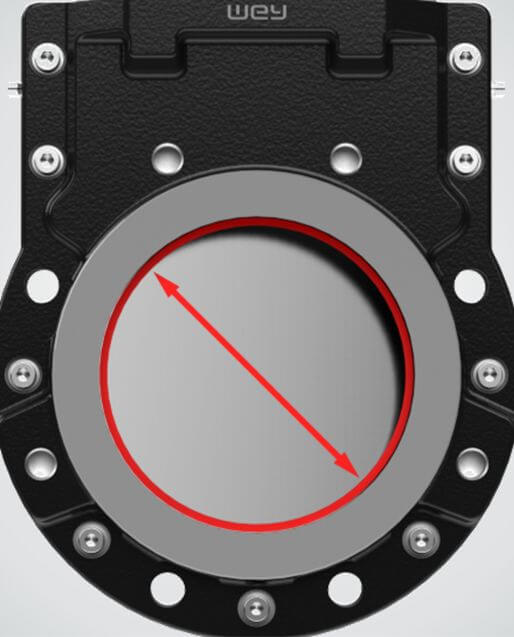

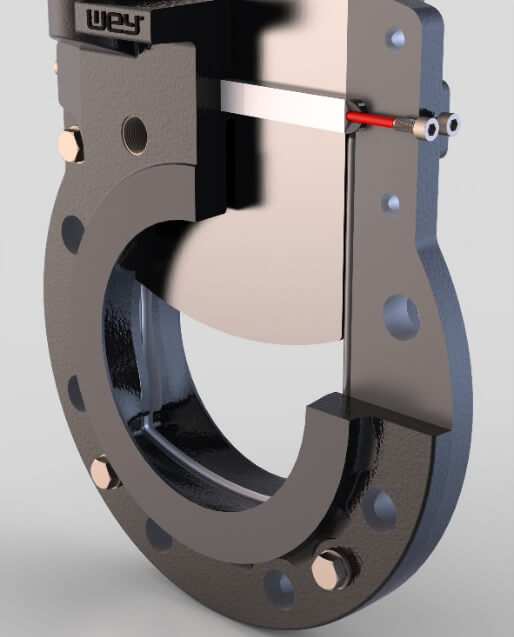

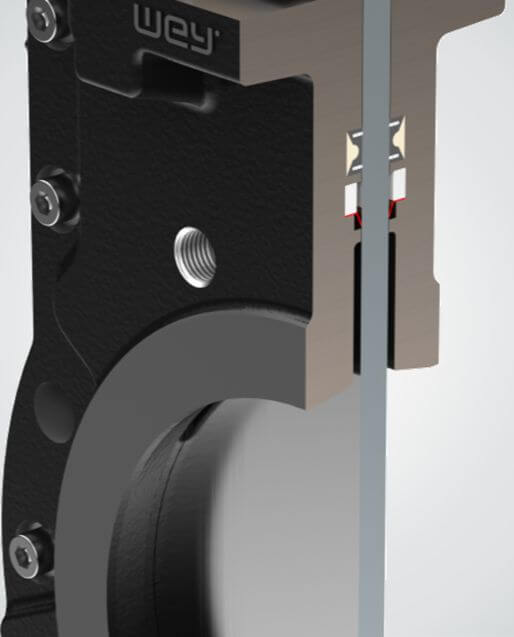

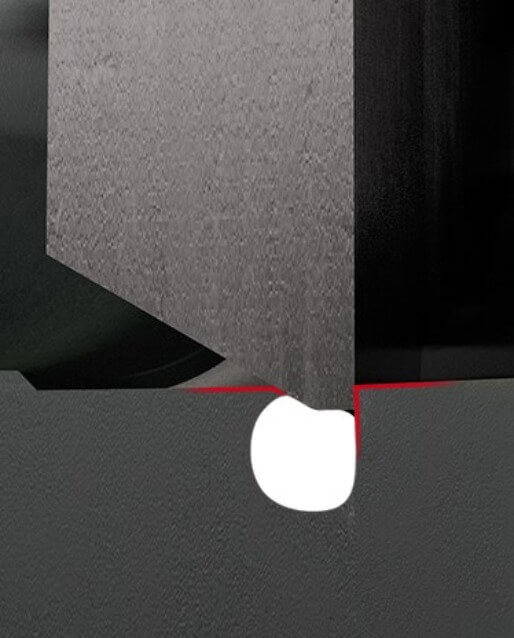

Our full bore knife gate valve combines the proven Wey middle flange design with a completely free passage. Perfectly suited for all applications where pipes and valves need to be cleaned regularly with pigs. Specially designed scrapers remove deposits from the gate every time it is opened. The FB knife gate valve has already been installed in numerous plants for thermal sea or lake water utilization and has proven itself in the fight against the quagga mussel.
CHARACTERISTICS FB Series
Nominal sizes: 50 – 2000 mm
Material: Stainless steel, Ductile iron
Pressure rating: 0 – 10 bar
Flange drilling: PN6, PN10, PN16, ANSI Class 150, BS10-D, BS10-E, AS2129-D, AS2129-E
Face to face dimension: EN 558 series 20
Application areas
Water treatment
e.g. Seawater, Saltwater ...
Downloads
General documents
Product brochure knife gate valves
Data sheets
FB with bevel gear up to 4 bar
FB with bevel gear up to 10 bar
FB with electric actuator up to 4 bar
FB with electric actuator up to 10 bar
