TI3 Series

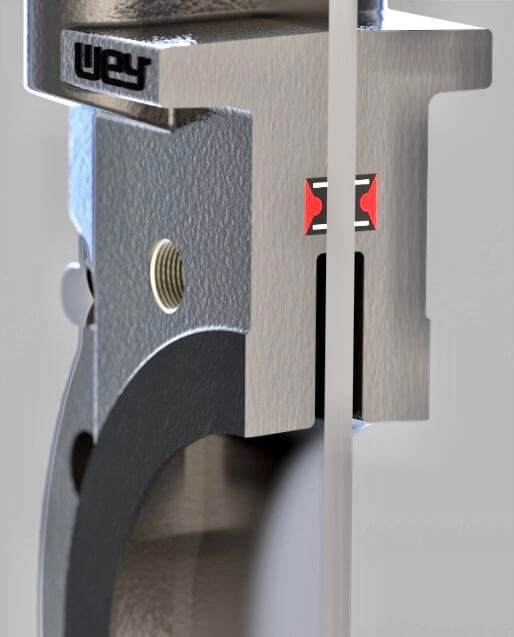

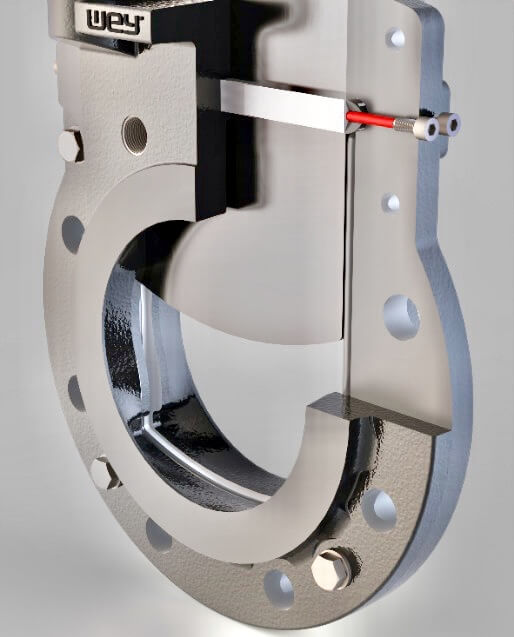

TI3 Series The TI3 model really is a unique design. It is designed for shut-off isolation of differential pressure level sensing. Unlike other transmitter isolating valves, which are only adapted from standard knife gate valves, the TI3 model was developed for the sole purpose of isolating the transmitter. The TI3 uses standard 1/2" socket drive.
CHARACTERISTICS TI3 Series
Nominal sizes: 80 mm
Material: Stainless steel
Pressure rating: 0 – 10 bar
Flange drilling: ANSI Class 150
Face to face dimension: MSS-SP81
Application areas
Pulp and paper industry
e.g. Pulp Stock (Low to high density), Chemical solutions, bleaching agents ...
Downloads
General documents
Product brochure knife gate valves
