HSI Series

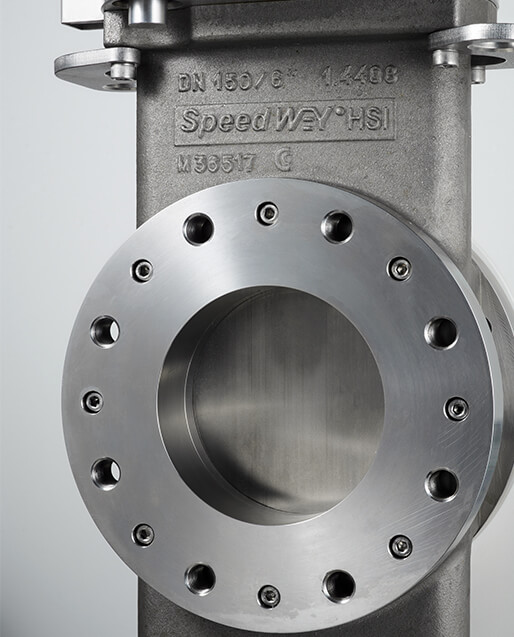

HSI SERIES The HSI knife gate valve was specially developed for use in pipelines at risk of dust explosions, to prevent explosions from spreading beyond the valve installation point. With a closing time of 23 milliseconds, it makes a significant contribution to protecting human life at work, as well as systems with explosive gas and dust mixtures.
CHARACTERISTICS “SpeedWey” HSI Series
Nominal sizes: 65 – 400 mm
Material: Stainless steel
Pressure rating: 0 – 16 bar
Flange drilling: PN16, ANSI Class 150 , DIN 11864-2
Face to face dimension: Special length
Application areas
Chemical and petrochemical industries
e.g.Powder...
Food and beverage
e.g.Powder/flour dust...
Downloads
General documents
Product brochure knife gate valves
Instruction manual hygiene version
Declaration of conformity DGRL
Declaration of conformity ATEX HSI
Declaration of conformity ATEX HSI hygiene version
