HD Series

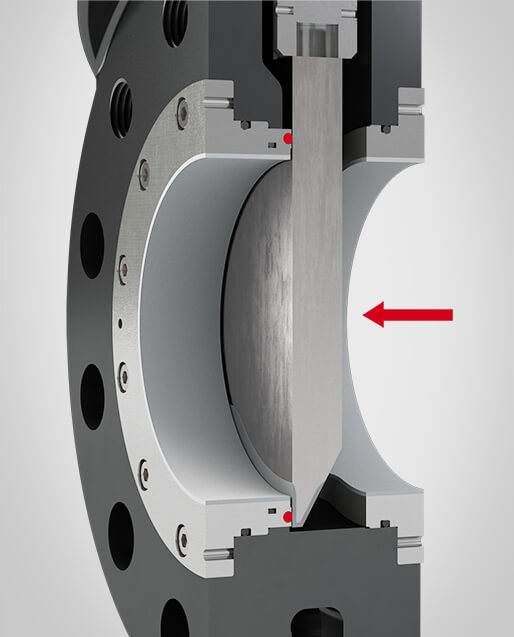

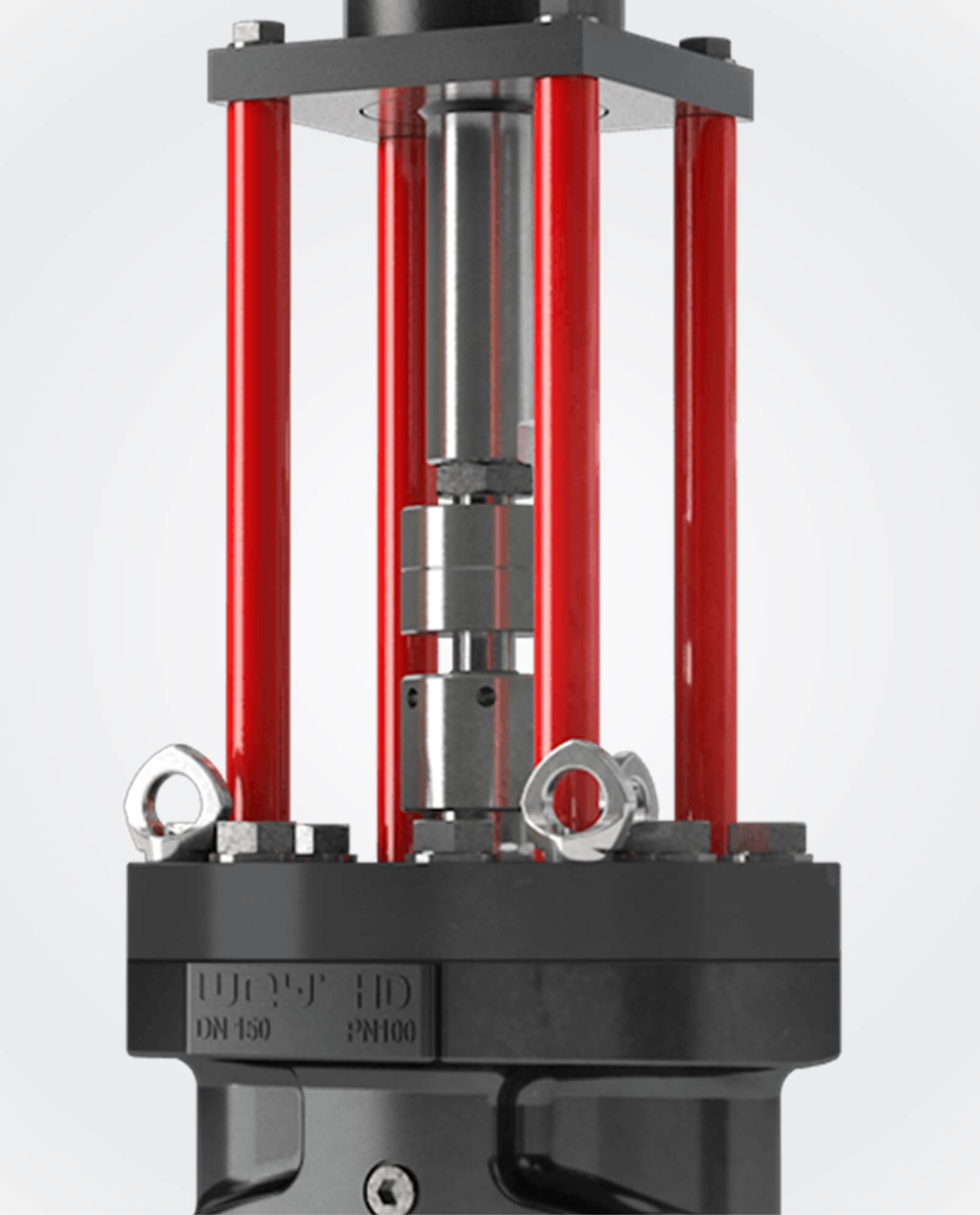

HD Series The HD series is an extraordinary development of the Wey knife gate valve for operation up to a maximum pressure of 100 bar. The ingenious design ensures that the pressure of the medium creates an automatic sealing effect inside the seat area. The special bonnet design also allows media containing solids to be flushed out – and, of course, it is completely airtight. This makes the HD series ideal for the most difficult applications.

CHARACTERISTICS HD Series

Nominal sizes: 80 – 400 mm

Material: Stainless steel , Cast steel

Pressure rating: 0 – 100 bar

Flange drilling: PN40, PN63, PN100, ANSI Class 600

Face to face dimension: Special length
