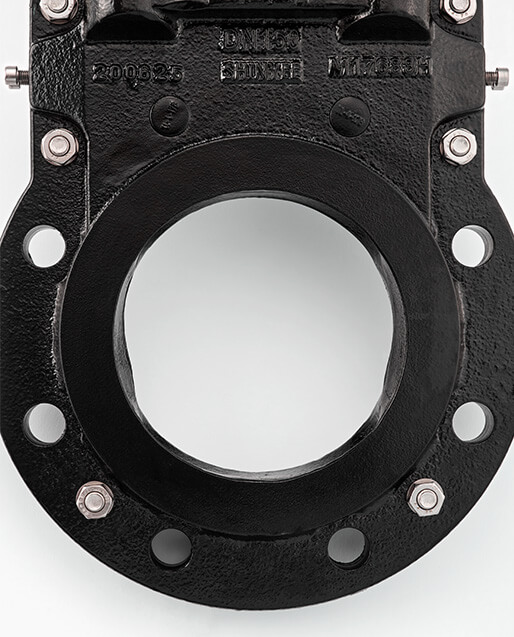

MH Series

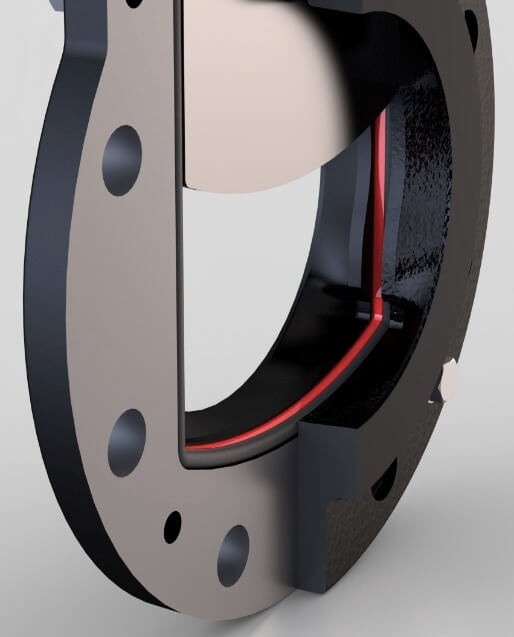

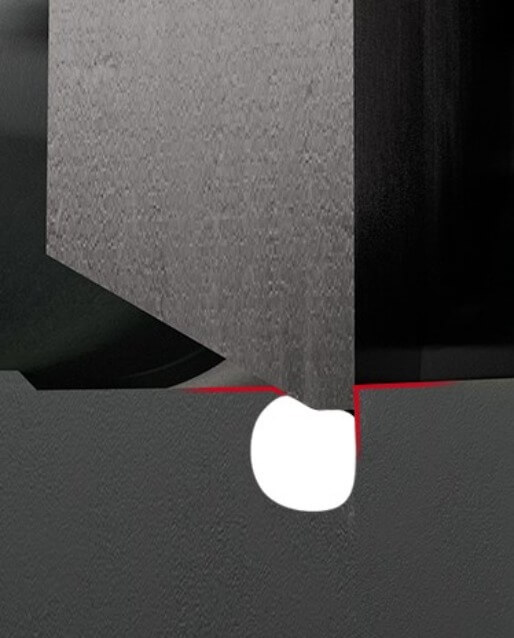

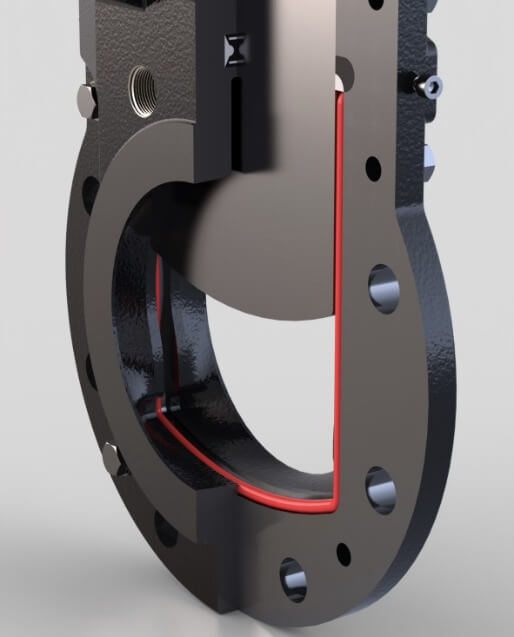

MH Series The MH series is designed for extremely high pressures in particularly demanding applications. The original Wey design ensures optimal sealing in the seat and is 100% bubble-tight, regardless of pressure, medium, or on/off cycle.
CHARACTERISTICS MH Series
Nominal sizes: 100 – 400 mm
Material: Stainless steel , Ductile iron, Special material
Pressure rating: 0 – 25 bar
Flange drilling: PN25, ANSI Class 150 , ANSI Class 300
Face to face dimension: EN 558 series 16
Application areas
Mining
e.g. Mining slurry, Sinter water, Tailings, , Acids and phosphates ...
Chemical and petrochemical industries
e.g. Viscous pastes, Bitumen/tar ...
Infrastructure
e.g. Waste water ...
Coal fired power stations
e.g. Coal slurry ...
Pulp and paper industry
e.g. Pulp Stock (Low to high density), Liquor (black, white, green), Chemical solutions, bleaching agents ...
Waste water treatment plants
e.g. Raw water, Sludge, Digested sludge ...
