VS series

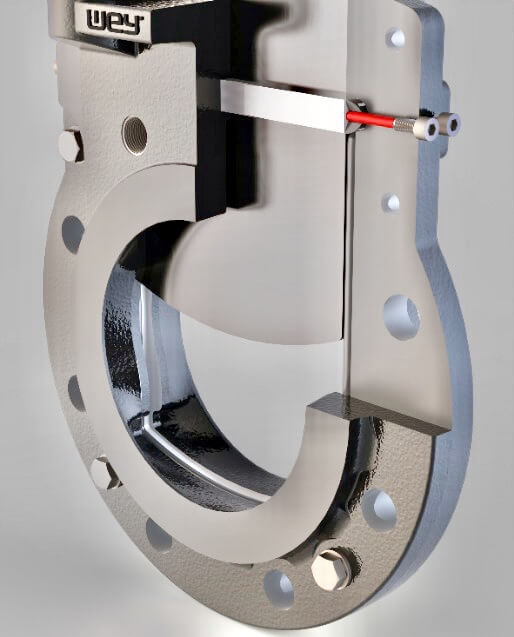

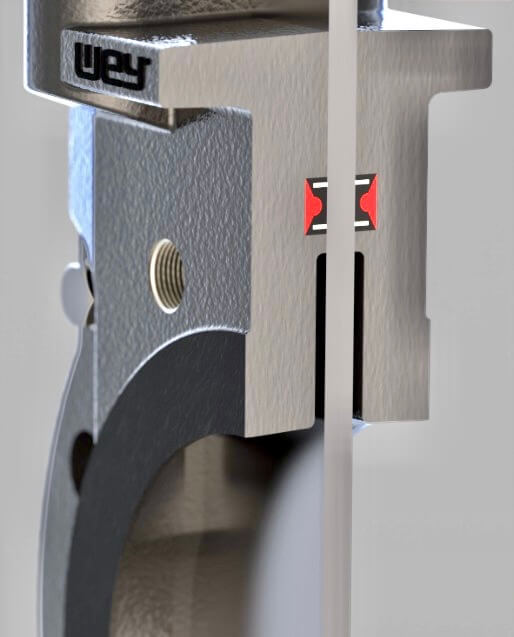

The appeal of the VS series lies in its ingenious semi-lug design. The lightweight construction of this knife gate valve, which is available in stainless steel, makes it very cost-effective. Nonetheless, it gives our customers the highest level of reliability and durability in use. This is also because – like all Wey products – it can be repacked at any time and ensures zero leakage while in use.
CHARACTERISTICS VS Series
Nominal sizes: 50 – 900 mm
Material: Stainless steel, Special material
Pressure rating: 0 – 10 bar
Flange drilling: ANSI Class 150
Face to face dimension: MSS-SP81
Application areas
Biogas plants
e.g. Food waste, Household waste, Wood chips, Manure, Substrates, Other renewable resources ...
Chemical and petrochemical industries
e.g. Viscous pastes, Granulates, Chemically contaminated waste water, Bitumen/tar ...
Infrastructure
e.g. Waste water, Rainwater, Industrial water, Mixed water ...
Food and beverage
e.g. Syrups, juices and beverages, Cereal, vegetable, mash, etc., Processed fruits, Cheese powder, Cocoa beans ...
Pulp and paper industry
e.g. Pulp Stock (Low to high density), Liquor (black, white, green), Chemical solutions, bleaching agents, Recycling tissue ...
Waste water treatment plants
e.g. Waste water, Raw water, Sludge, Digested sludge, Floating sludge ...
Water treatment
e.g. Seawater, Saltwater ...
Downloads
General documents
Product brochure knife gate valves
Declaration of conformity Machinery Directive
Declaration of incorporation Machinery Directive
Data sheets
